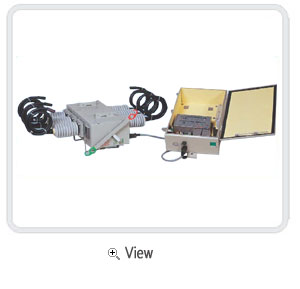

SF6 Gas Insulated Load Break Switch (Pole Mounted) |
|
| The SF6 gas insulated load break switch is a switchgear using SF6 gas of which the insulation and extinction performance is excellent, and is used in distribution lines to isolate sections of the main distribution lines / branches of lines, and is equipment that can provide information of various kinds to a master supervisory system. And control is possible through RTU. |
|
|
 |
|
|
Characteristics |
|
◎ Realization of maintenance free, small and light weight (Body weight is 130kg, and is easy to transport and install)
◎ Having safety devices (electrical, mechanical low pressure interlock, pressure relief valve for high pressure gas, lockout)
◎ Having the insulation and interruption performance even in 1.4psi(G) of SF6 GAS pressure
◎ Can extend distribution automation (Remote control is possible through RTU and modem)
◎ Can measure a line voltage and current (Voltage: A, B, C, R, S, T, Current: A, B, C, N) |
|
|
|
Ratings |
|
|
| Rated Voltage (kV) |
30.8 |
| Type |
JI-SGS |
| Rated Current (A) |
400/630 |
| Rated Making Current (kA, peak) |
32.5, 5 Times |
| Rated Short-Time Current (kA, RMS) |
12.5 |
| Power Frequency Withstand Voltage (kV) |
60 |
| Impulse Withstand Voltage (kV) |
150 |
| Number of Operations Under Rated Load (Times) |
200 |
| Number of No-Voltage Operations (Times) |
5,000 |
| Weight (kg) |
130 |
| Applied Standards |
IEC 62271-1 |
|
|
|
|
